Overview

Joining forces with Reem and Hendawy, we are bringing games back to pockets!! Our final project is an attempt to revive the old Gameboi with 3d printed cooler features and a mix of ready-made games and ones of our creation.

Features

• Pocket-sized, foldable 3d printed skeleton, customed to house different components right in place to avoid moving.

• Controlled by 4-10 external buttons “or joysticks or whatever”.

• Interacts with the user visually and auditorily through a screen and a speaker.

• Reprogrammable through a socket in the kit to the microcontroller

• Supports a wide range of games.

Components

• LCD

• Microcontroller

• Speaker

• Pushbuttons

• Charging circuit

• Battery & holder

Processes and Machines

• 3D printer: for the cover and buttons

• MonoFab: for assembling different components

• Arduino IDE: to program our own games

Searching and Drafting

For the sake of keeping this page clean and simple, here is our sketching environment. Find in this Notion the reason behind selecting each component and a comparison between different types. In there is also how we organised and broke down work to manageable pieces.

Initial Design

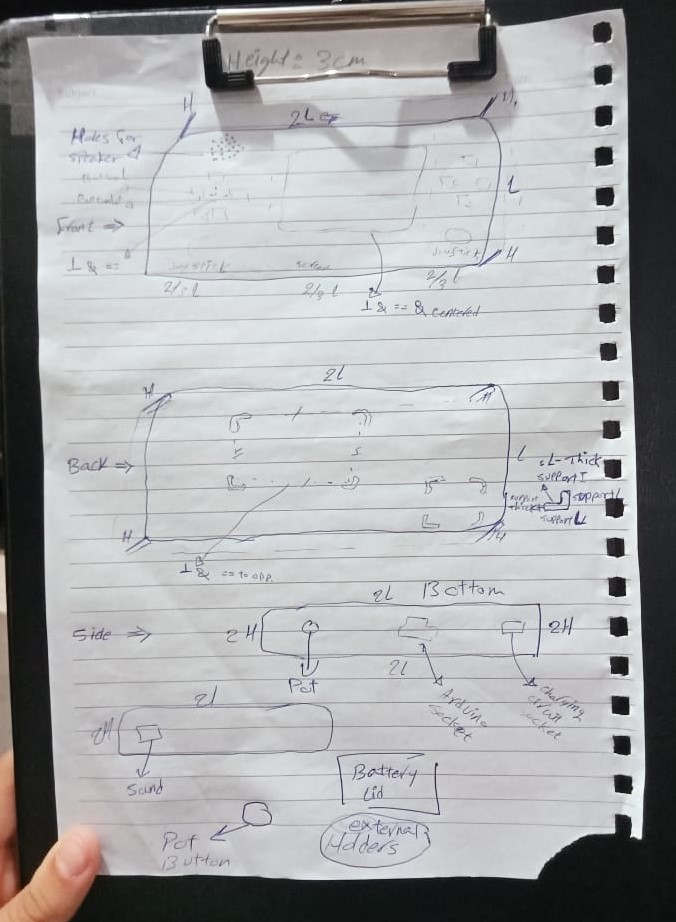

Viewing old projects, we created a preliminary design with rough estimates to the dimensions and holes.

Disassembly

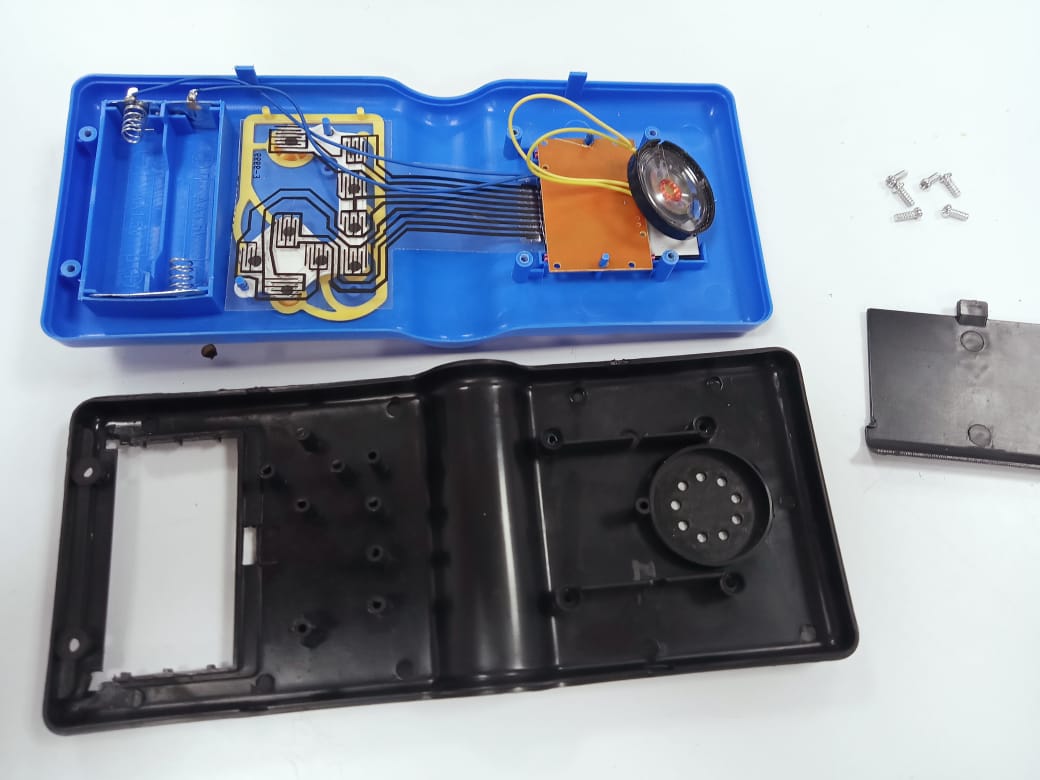

Though imagination is beautiful, some errors only scream existent after assembly. To minimize those, we dismantled an old GameBoi...

Notable Notes

Buttons need to either be screwed to the kit or have built-in supports underneath.

For a smoother click, we need either a flexible pcb or create different pcbs doing different functions and connecting them with flexible jumpers.

Leave open spaces in the kit for volume "potentiometer", charging, screws for fixation, and for a programming junction.

Kit Design

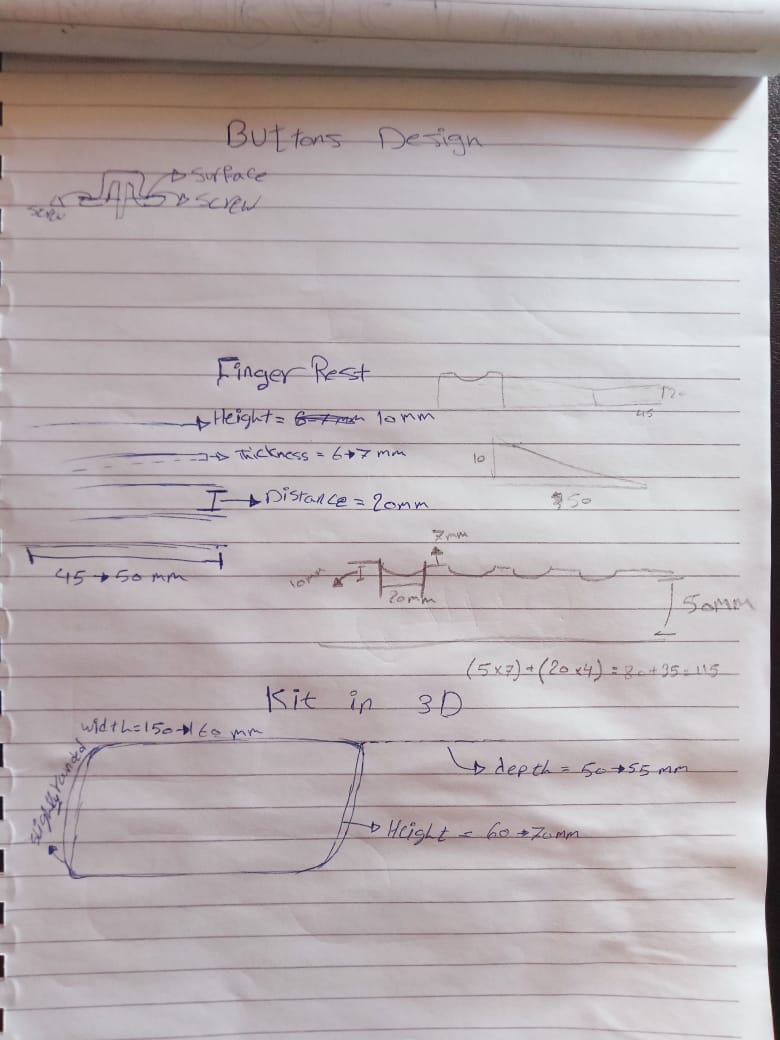

Trying to integrate the small size of ordinary GameBois and the comfortable design of PS controllers, we created a hybrid version.

To obtain the most comfortable dimensions/shape, we used modelling clay and plastic cups:""

Playing Parametrically

Defining dimensions in terms of variables is way more maintainable. For this we use Parametric Design. Here are the equations we used...

Features for Reference

Used to make the finger rests; find a guide here.

To control your cut dimensions; find a guide here.

To make it round, comfortable, and neat; find a guide here.

Design Edition #1

IMPORTANT NOTES

After each major change in solidworks, save your work. If you have a weak heart, you may also like to create a pack up copy when you are done with each feature. Trust me, it hurts when a single click pushes you to recreate a 7-hour worth design. No need to mention to keep clicking ctrl+s, if things go sideways the closest thing to take the hit will be your laptop screen hitting the keyboard violently.
